FRP Components

Fiber Reinforced Polymer Components

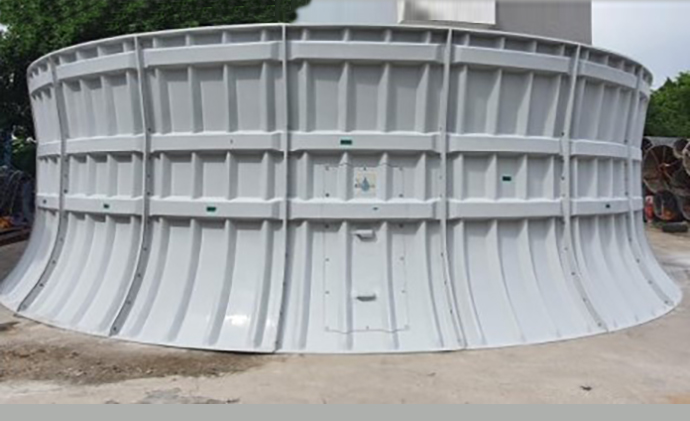

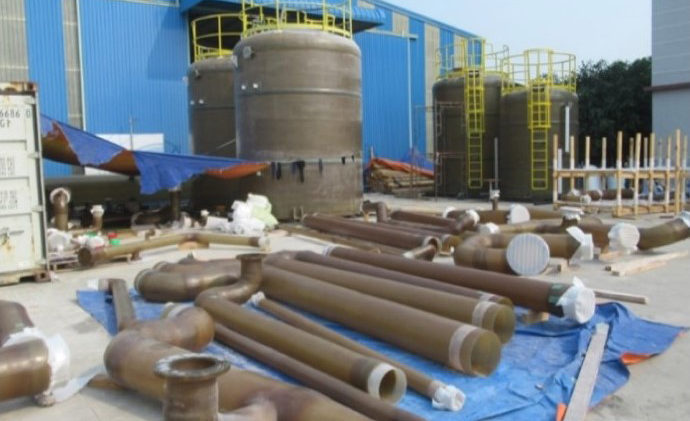

Over the past thirty years FRP (Fiber Reinforced Polymer) components – pultrusions, filament-wound piping and vessels, and hand-layup molded shapes such as fan stacks and casing panels – have become the go-to materials for structures of all types in many construction industries.

FRP Component Applications

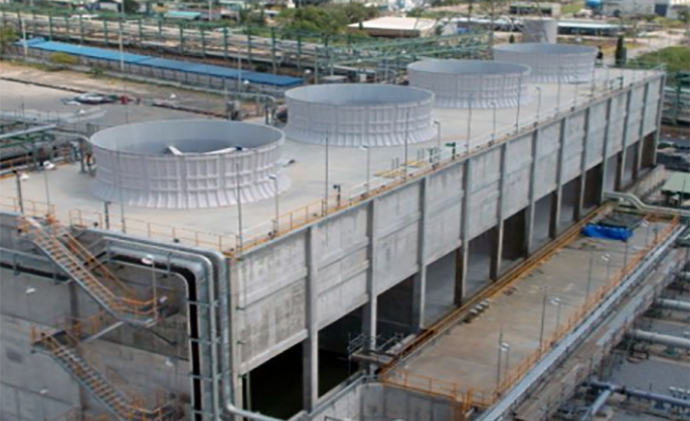

Cooling towers, water treatment plants, aquariums, biofiltration systems, and more rely on FRP products to provide the strength and non-corrosive features that FRP products offer over similar steel structures.

L S Enterprise Expands Portfolio with High-Quality FRP Solutions

L S Enterprise LLC now offers FRP from a company that regularly supplies materials into the restrictive Japanese market with products that meet strict Japanese engineering and quality requirements. We can also provide custom parts based on your designs and requirements. As a solutions provider, we are proud to announce this new addition to our portfolio.

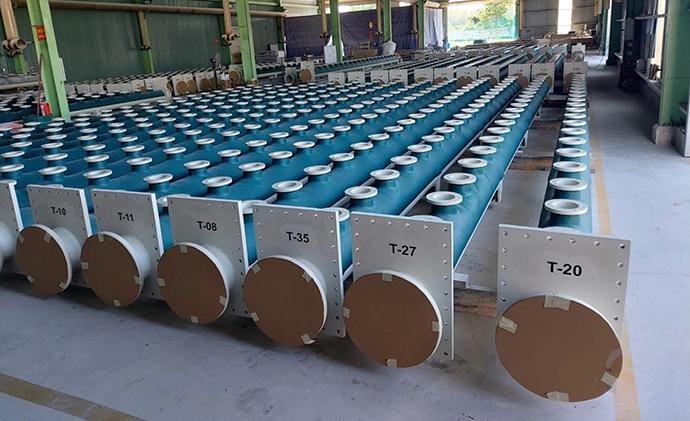

FRP Pipe

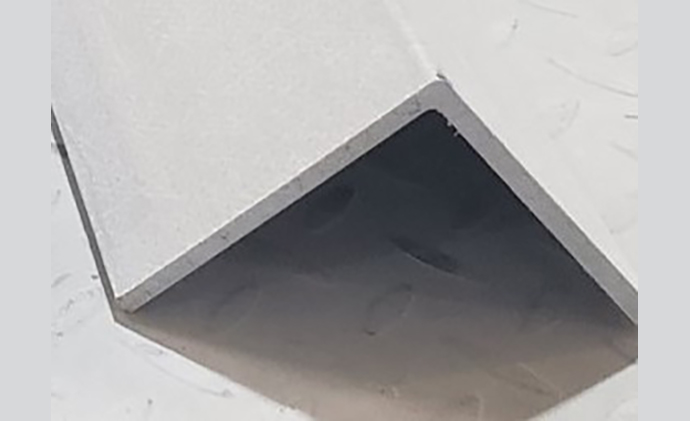

FRP Angle

FRP C-Channel

FRP I-Beam

FRP Tube

FRP Square Tube

Pultrusion Profiles - 90° Angles

All pultruded FRP profiles are available in the following resin types: Polyester, FR Polyester, FR Vinyl Ester.
Size – W x H x t in. [mm]	Weight lb/ft [kg/m]
2 x 2 x 0.25 [50.8 x 50.8 x 6.4]	0.81 [1.20]
3 x 3 x 0.25 [76.2 x 76.2 x 6.4]	1.21 [1.80]
4 x 4 x 0.25 [101.6 x 101.6 x 6.4]	1.61 [2.40]
4 x 4 x 0.375 [101.6 x 101.6 x 9.5]	2.36 [3.51]

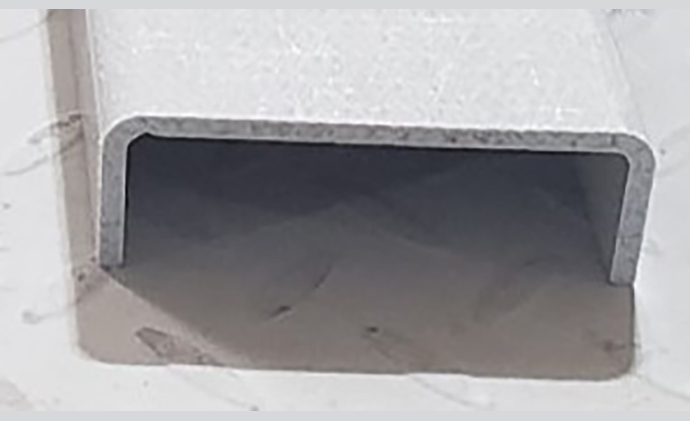

Pultrusion Profiles - C-Channels

All pultruded FRP profiles are available in the following resin types: Polyester, FR Polyester, FR Vinyl Ester.
Size – W x H x t in. [mm]	Weight lb/ft [kg/m]
4 x 1.375 x 0.1875 [101.6 x 34.9 x 4.8]	1.03 [1.53]
6 x 1.625 x 0.25 [152.4 x 41.3 x 6.4]	1.83 [2.73]
6 x 1.6875 x 0.375 [152.4 x 42.9 x 9.5]	2.68 [3.99]

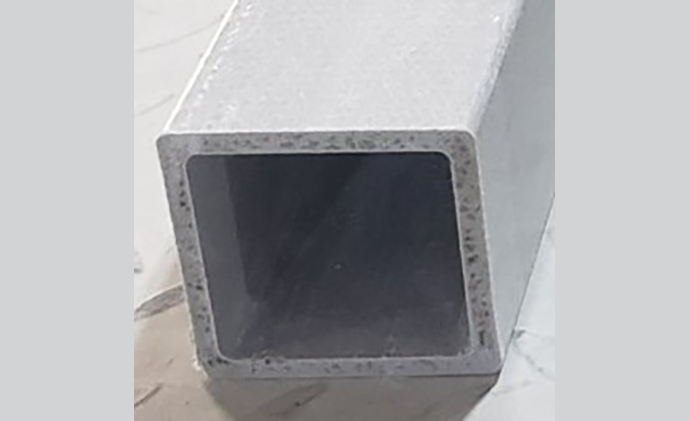

Pultrusion Profiles - Rectangular/Square Tubes

All pultruded FRP profiles are available in the following resin types: Polyester, FR Polyester, FR Vinyl Ester.
Size – W x H x t in. [mm]	Weight lb/ft [kg/m]
3 x 3 x 0.25 [76.2 x 76.2 x 6.4]	2.28 [3.40]
4 x 4 x 0.25 [101.6 x 101.6 x 6.4]	3.11 [4.63]
6 x 1.6875 x 0.375 [152.4 x 42.9 x 9.5]	2.68 [3.99]

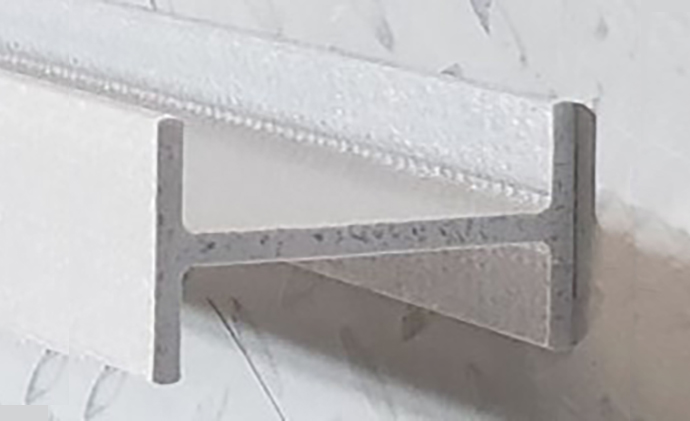

Pultrusion Profiles - I-Beams

All pultruded FRP profiles are available in the following resin types: Polyester, FR Polyester, FR Vinyl Ester.
Size – W x H x t in. [mm]	Weight lb/ft [kg/m]
2 x 4 x 0.25 [50.8 x 101.6 x 6.4]	1.62 [2.41]
3 x 6 x 0.25 [76.2 x 152.4 x 6.4]	2.49 [3.71]
3 x 6 x 0.375 [76.2 x 152.4 x 9.5]	3.62 [5.39]

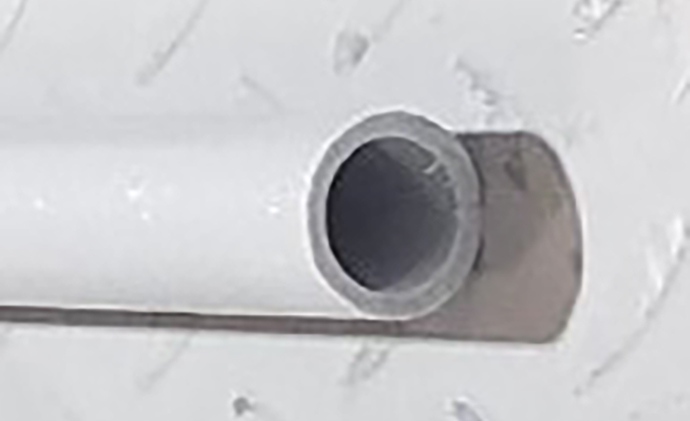

Pultrusion Profiles - Round Tubes

All pultruded FRP profiles are available in the following resin types: Polyester, FR Polyester, FR Vinyl Ester.
Size – O.D. x t in. [mm]	Weight lb/ft [kg/m]
1 x 0.125 [25.4 x 3.2]	0.30 [0.45]

Characteristic	Test Method	Value	Units	CTI STD-137 Requirement (minimum values)
Tensile Stress (Lengthwise)	ASTM D638	59,175 – 73,824 408 – 509	psi MPa	30,000 206.8
Tensile Modulus (Lengthwise)	ASTM D638	4.71 – 7.12 x 10⁶ 32.5 – 49.1	psi GPa	2.5 x 10⁶ 17.2 – 17.9
Compressive Stress (Lengthwise)	ASTM D695	30,458 – 42,351 210 – 292	psi MPa	30,000 206.8
Compressive Modulus (Lengthwise)	ASTM D695	2.99 – 3.47 x 10⁶ 20.6 – 23.9	psi GPa	2.5 x 10⁶ 17.2 – 17.9
Flexural Stress (Lengthwise)	ASTM D790	54,969 – 79,480 379 – 548	psi MPa	30,000 206.8
Flexural Modulus (Lengthwise)	ASTM D790	3.33 – 3.93 x 10⁶ 23.0 – 27.1	psi GPa	1.8 x 10⁶ 12.4 – 15.2

Characteristic	Test Method	Value	Units	CTI STD-137 Requirement (minimum values)
24hr Water Absorption	ASTM D570	0.04 – 0.34	% Max	0.60
Density	ASTM D792	0.069 – 0.076 1.91 – 2.10	lb/in³ g/cm³	0.062 – 0.070 1.72 – 1.94
Flammability	ASTM D635	Flame front does not reach the 25mm mark
UL94 – Vertical Burn Test	UL94	V – 0
Shore D Hardness		90
